WS-SEALS Hydraulic Cylinder Seal NBR Rubber Combination Piston Seal Compact KDAS Hydraulic Seal DAS

WS-SEALS Hydraulic Cylinder Seal NBR Rubber Combination Piston Seal Compact KDAS Hydraulic Seal DAS

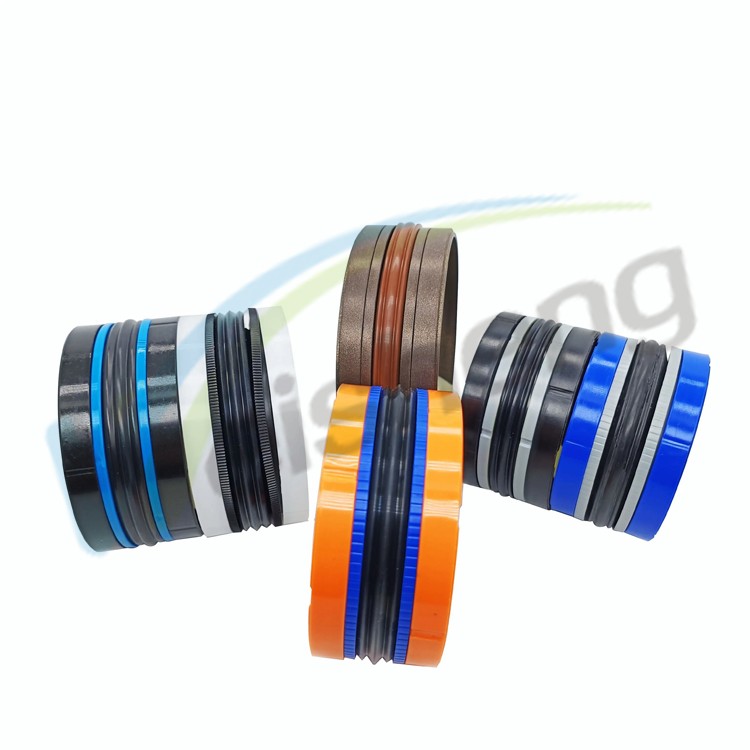

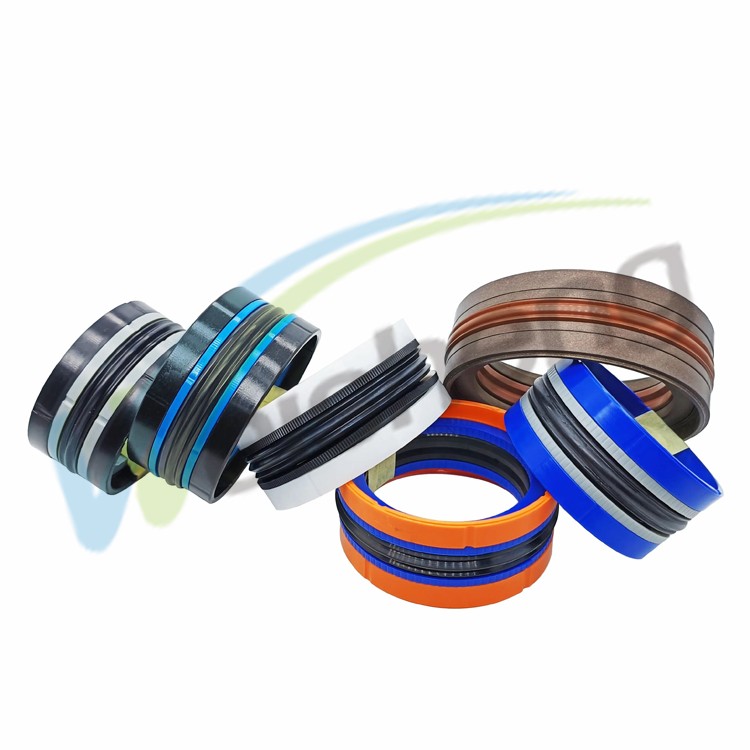

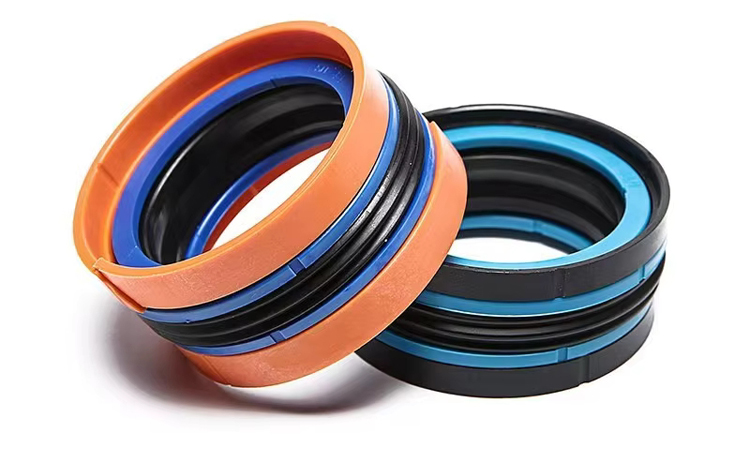

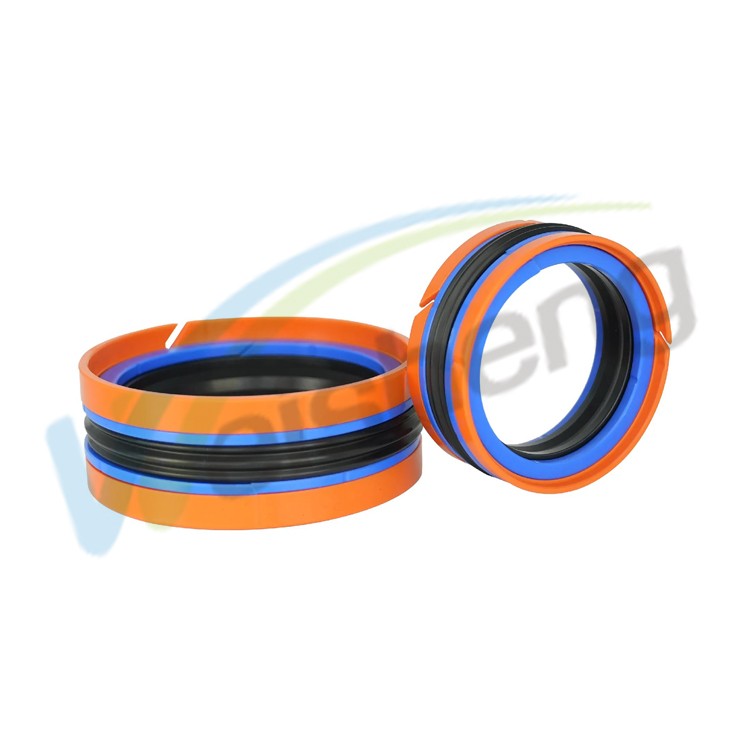

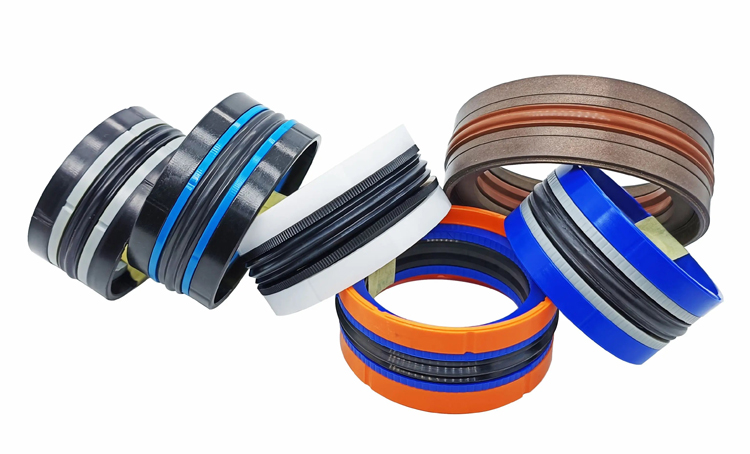

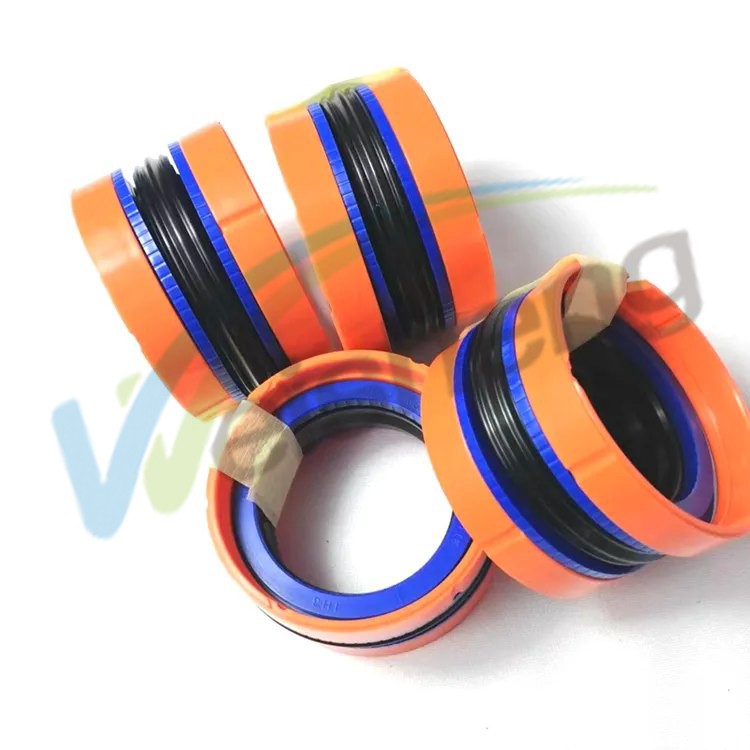

KDAS has a NBR ring, having 3 sealing lips, in the middle; 2 polyester elastomer back-up rings used for decreasing permissible gap in both sides; 2 POM rings as guide besides them. As seen in the design, sealing operation is carried out by NBR ring.
With 5 parts design our KDAS compact seals are used as piston seal for double acting cylinders at maximum 400 bar.

Product Description

The KDAS Piston Seal is a five-piecê compositè seal made from high-quality materials like NB

Rrubber, polyester elastomer, and polyformaldehyde. It ensures

n-35°C to 100℃, and movement speeds of 0.5 m s. Suitable for hydrauic cyinder pistons, it provides both bi-dir

excellent sealing performance under low pressure and can handle pressures up to 35 MPa, temperatures betwee

ectional sealing and radial force guidance.

Product Information
Product Name	Hydraulic Cylinder Piston Seals
Type	KDAS Type
Feature	High Pressure
Size	IDODH(mm)
Material	POM+NBR
Application	Hydraulic Cylinder Piston
Temperature	-45℃-+100℃
Pressure al	≤ 30 MPa
