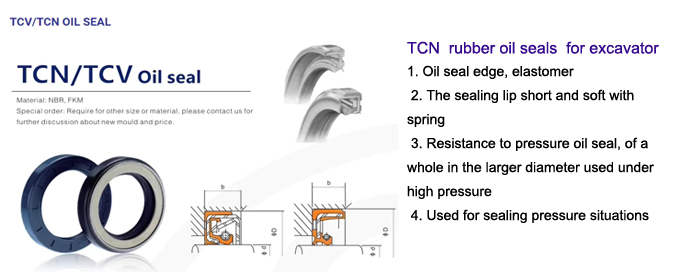

TCN high pressure oil seal is used for sealing under oil pressure. The lip deformation is small under pressure. The skeleton is an integral pressure oil seal, which is used under large diameter and high pressure.
Product Description
Size list
NO | PART NO | SIZE | NO | PART NO | SIZE |
1 | AP1033-A0 | 20*40*11 | 20 | AP3527-B9 | 70*95*13 |
2 | AP1148-E0 | 22*42*11 | 21 | AP3618-G7 | 75*100*13 |
3 | AP1338-F1 | 25*45*11 | 22 | AP3744-K5 | 80*105*13 |
4 | AP1563-J4 | 28*48*11 | 23 | AP3842-H3 | 85*110*13 |
5 | AP1709-H4 | 30*50*11 | 24 | PA3994-B7 | 95*120*13 |
6 | AP1904-F3 | 32*52*11 | 25 | AP1063-B0 | 100*125*13 |
7 | AP2085-G1 | 35*55*11 | 26 | AP4399-E0 | 125*155*14 |
8 | AP2240-G4 | 38*58*11 | 27 | AP4450-G3 | 130*160*14 |
9 | AP2388-E5 | 40*62*11 | 28 | AP4495-G0 | 135*165*14 |
10 | AP2390 | 40*62*12 | 29 | AP4542-F0 | 140*170*14 |
11 | AP2507-H2 | 42*62*11 | 30 | AP4624-G0 | 150*180*14 |
12 | AP2668-G4 | 45*68*12 | 31 | BP4561 | 35*65*15 |
13 | AP2791-G0 | 45*70*12 | 32 | BP3054 | 65*90*12 |
14 | AP2864-L3 | 50*72*12 | 33 | BP3243 | 65*95*13 |
15 | AP2967-E0 | 52*72*12 | 34 | AW2388 | 40*62*11 |
16 | AP2967-F0 | 52*75*9 | 35 | AW2668 | 45*68*12 |
17 | AP3055-F3 | 55*78*12 | 36 | AW3055 | 55*78*12 |
18 | AP3222-B2 | 62*82*12 | 37 | AW3222 | 60*82*12 |
19 | AP3409-F1 | 65*90*13 |
Detailed Image
