WS-SEALS PTFE Bronze GSF Seal Gyld Ring for Hydraulic Piston

WS-SEALS PTFE Bronze GSF Seal Gyld Ring for Hydraulic Piston

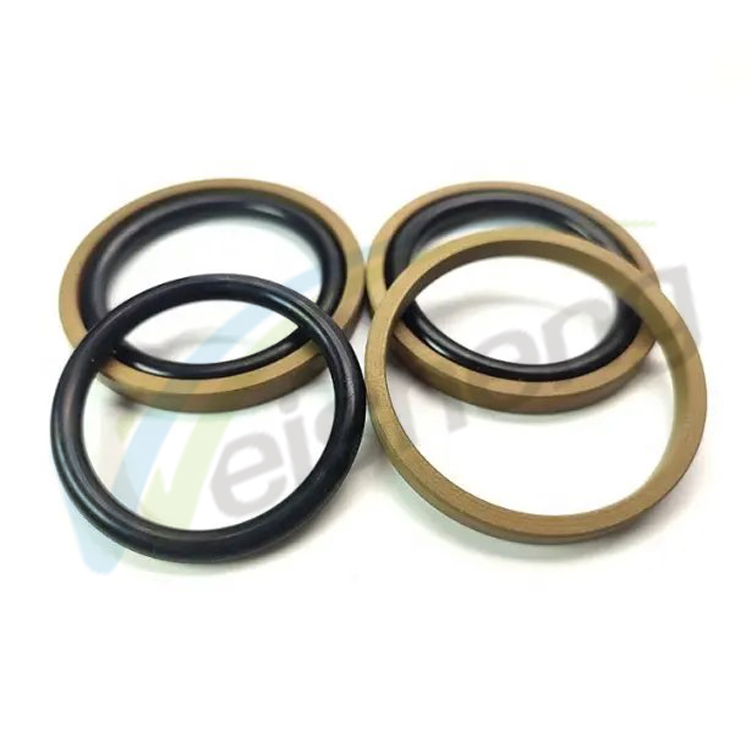

Hydraulic piston Glyd Ring is a very effective and reliable low frictional seal. It is particularly suitable as a piston seal in
both high and low pressure systems. It comprises a PTFE ring, strengthened with additives to resist creep, which is pre-loaded by
an O ring to be effective for the operating pressure range recommended. As the pressure rises the O ring deforms and compresses
the PTFE ring against the tube wall increasing the sealing force and the effectiveness of the seal. As only the PTFE ring is in
contact with the sliding surface, friction is very low and stick-slip movement is eliminated.

Product Description

place of origin	Guangdong, China
Brand Name	WS-Seals
model number	Piston seals
Name	PTFE Bronze GSF seal Gyld ring for Hydraulic piston
Type	GSF/BSF/Glyd ring
Color	Black,brown,green
Feature	Oil resistance
Max working temperature	100℃
MOQ	10pcs
Certificate	ISO
Keyword	GSF seal
Hardness	40~90 Shore
Size	Standard Size

Advantages of glyd ring:
a. Low breakout and running
b. High surface speed
c. Compact piston design
d. The seal ring component can be machined to any size
e. Minimum static and dynamic friction coefficient for a minimum energy loss and operating

Temperature of glyd ring:
f. Suitable for non lubricating fluids depending on seal material for optimum design flexibility
g. High wear resistance ensures long service life
h. No adhesive effect to the mating surface during long period of inactivity or storage
i. Suitable for most hydraulic fluids in relation with most modern hardware materials and surface finish depending on material
selected.
j. Suitable for new environmentally safe hydraulic fluids
