WS-SEALS Spgw Ptfe Compact Hydraulic Seal Compact Double Acting Piston Seal SPGW Piston Seal

WS-SEALS Spgw Ptfe Compact Hydraulic Seal Compact Double Acting Piston Seal SPGW Piston Seal

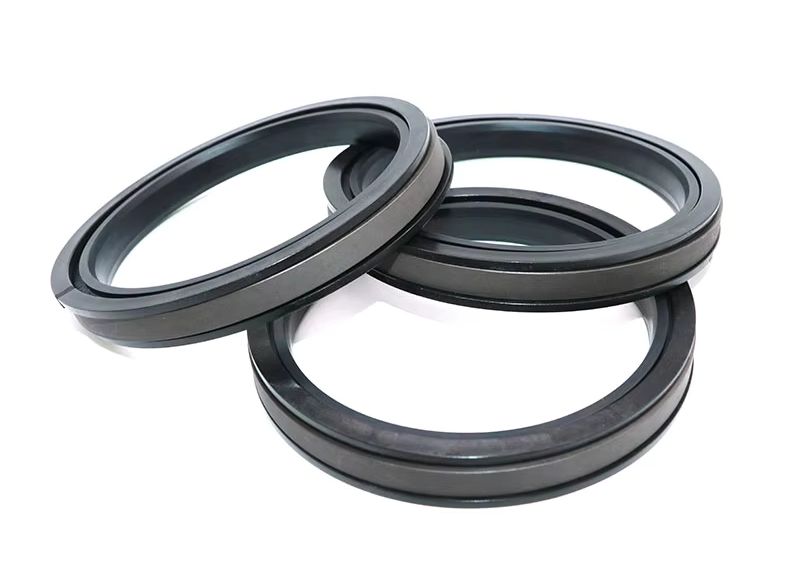

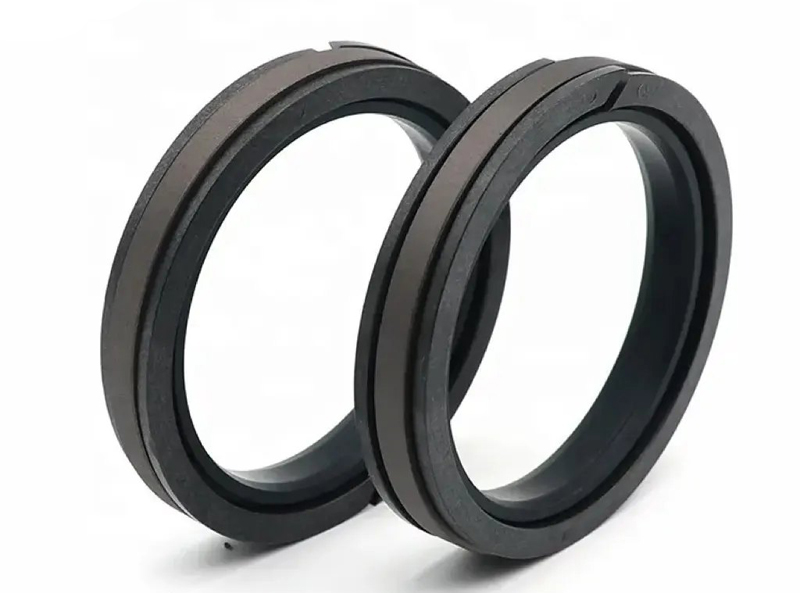

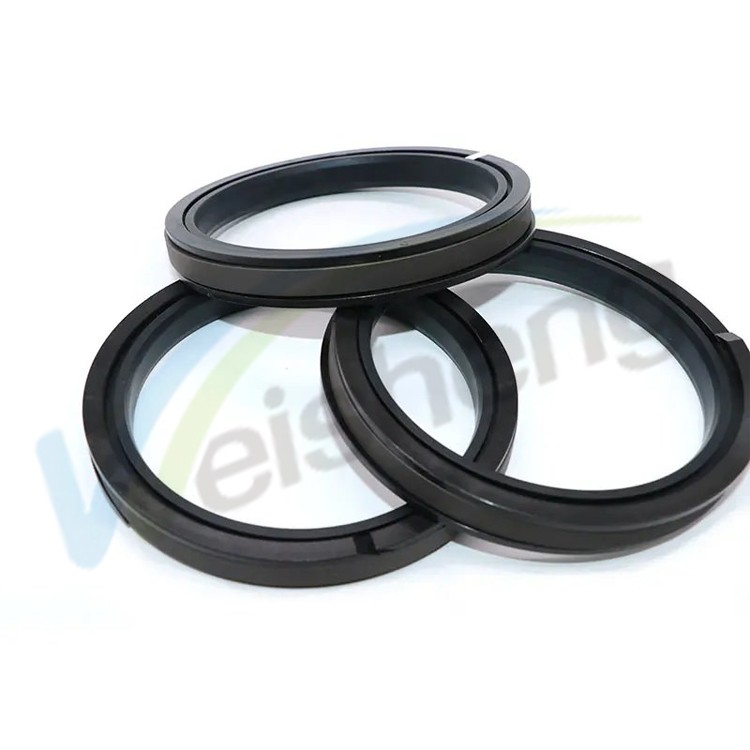

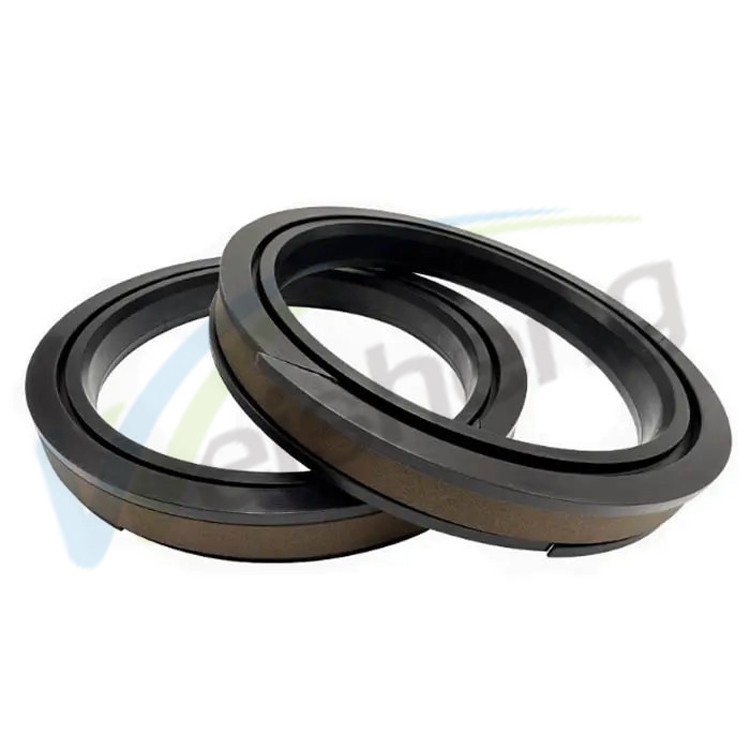

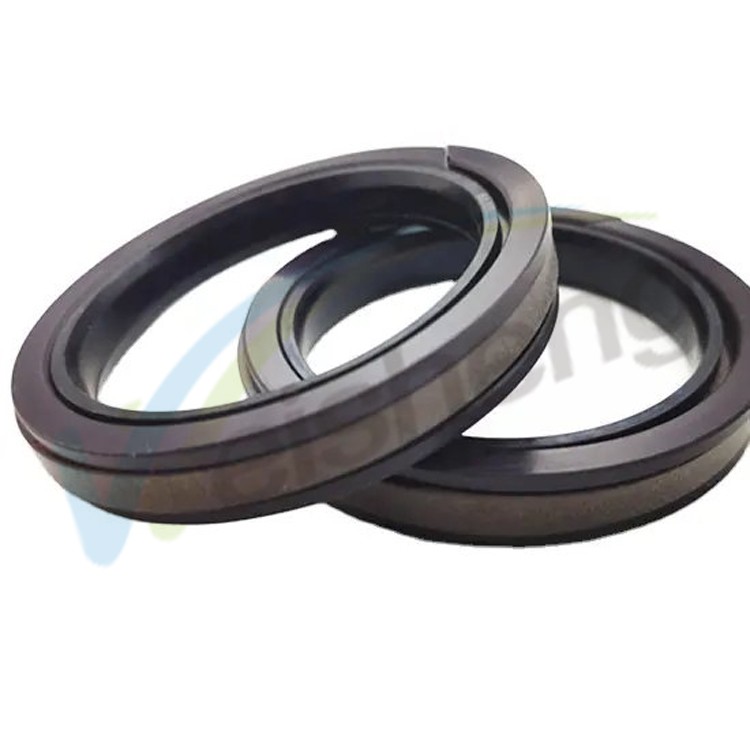

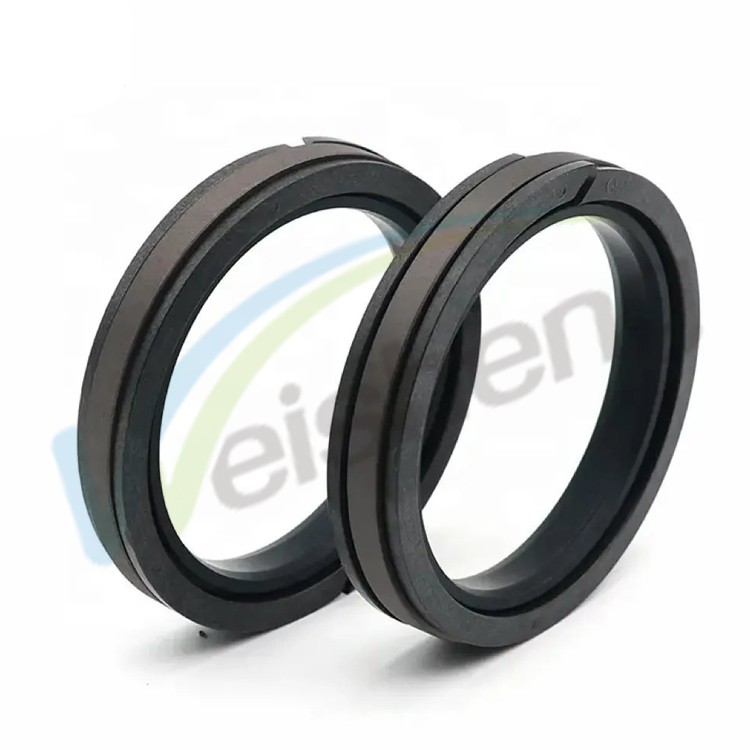

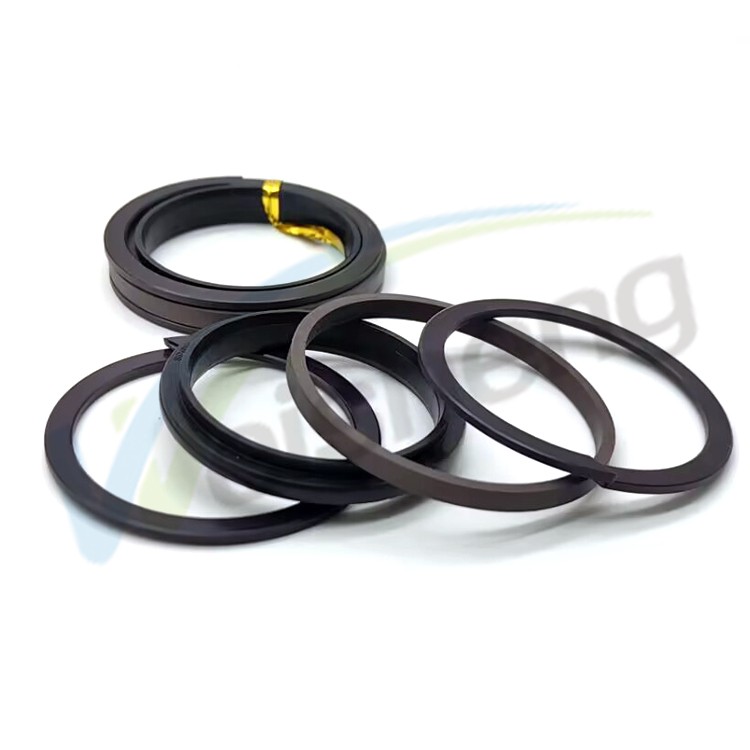

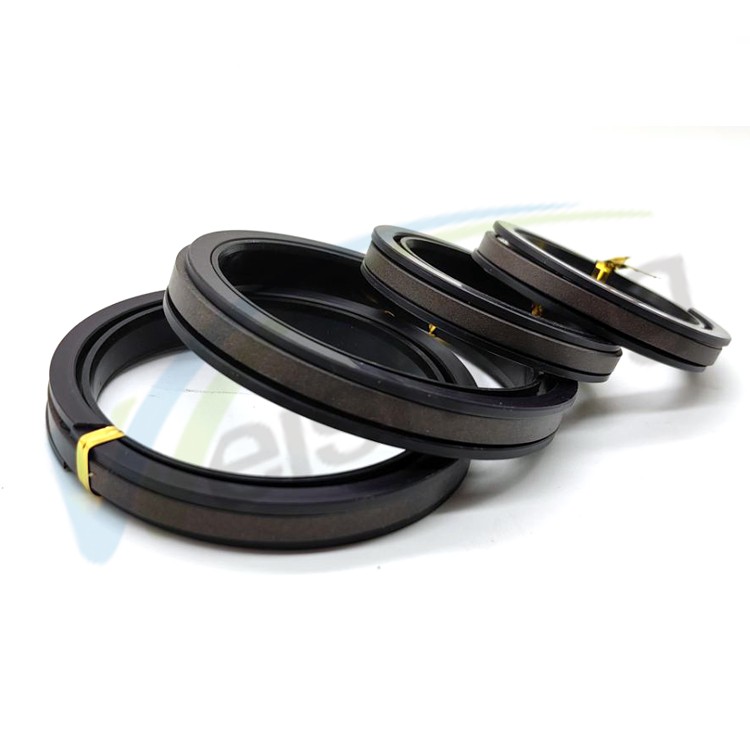

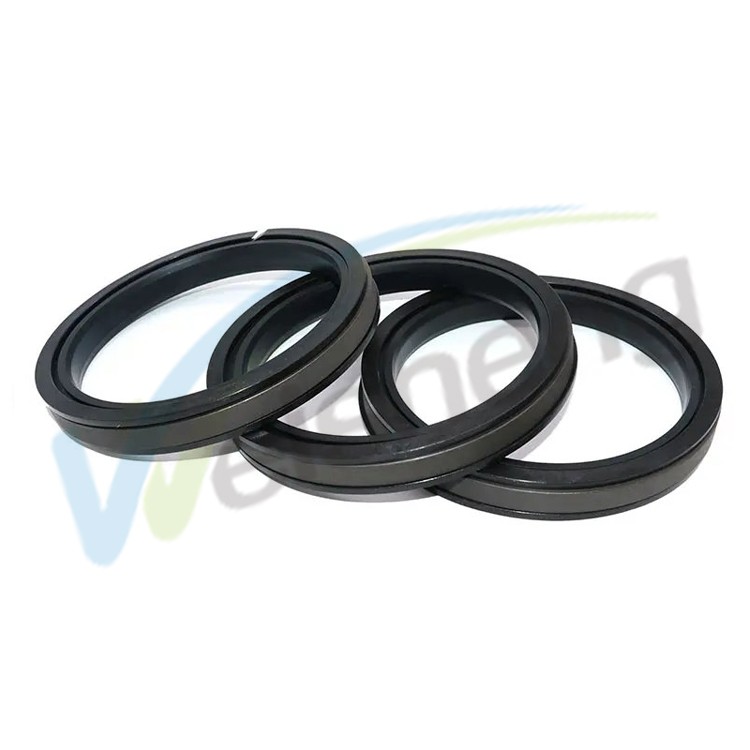

SPGW heavy duty piston seals are designed for double acting hydraulic cylinders used in heavy duty applications. They consist of a specialized bronze/mos2 ptfe ring, 2 specially fabricated polyamide support rings and high pressure nbr ring. Some advantages are its simple design, high linear velocity values, non-bonding property on the surface in long static cases, low friction, wider permissible gaps and long life service. Therefore, SPGW is very suitable for heavy duty applications.

Product Description

place of origin	Shaanxi, China
Brand Name	ws-seals
model number	SPGW
Name	Construction Machinery Bronze PTFE Piston Compact Seal Spgw
Key word	Compact Seal Spgw
Material	NBR+PTFE BRONZE
MOQ	20
Application	Industry
Feature	Sealing Performance
Temperature	-30~100°C
Speed	1.5m/s
Style	Hydraulic
Function	Dust Proof, Shaft Seal

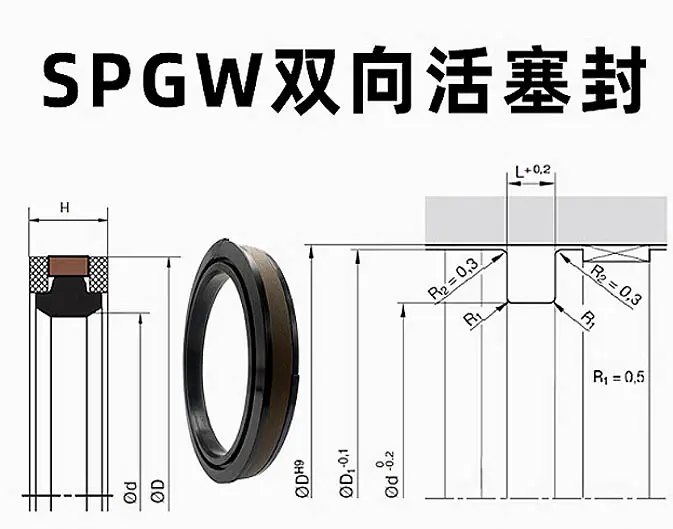

Product specifications

50×36×8.5	120×105×12
60×46×8.5	125×102×15.5
63×48×10.5	130×107×15.5
65×50×10.5	135×112×15.5
70×55×10.5	140×117×15.5
75×60×10.5	145×122×15.5
80×65×10.5	150×127×15.5
85×70×10.5	160×137×15.5
90×75×10.5	165×142×15.5
95×80×10.5	170×147×15.5
100×85×12	180×157×15.5
105×90×12	185×162×15.5
110×95×12	190×167×15.5
115×100×12	200×177×15.5
