WS-SEALS Good Oil Resistant PTFE Spg GSJ GSF Piston Seals

SPG is double acting hydraulic piston seal. It is a combination of a slipper seal and an energizing square ring.
Operating conditions
-Pressure: ≤ 40Mpa
-Temperature: -35~+200° C
-Speed: ≤ 5m/s
-Media: almost all media

EMAIL

Product Description

SPG bidirectional seal is a sealing element specially designed for bidirectional sealing, typically used to prevent leakage of fluids or gases in both directions. Its main function is to provide bidirectional sealing during the reciprocating motion of the piston, ensuring the efficient and stable operation of the system. The bidirectional sealing design enables it to adapt to the bidirectional movement of the piston while effectively preventing fluid leakage. This sealing element is usually composed of elastomers and wear-resistant materials, and can maintain a good sealing effect while withstanding pressure. Materials: Commonly used materials include polytetrafluoroethylene (PTFE), nitrile rubber (NBR), fluorine rubber (FKM), etc. PTFE offers excellent wear resistance and a low coefficient of friction, making it suitable for high-temperature and high-pressure environments. NBR and FKM, on the other hand, possess excellent oil resistance and chemical corrosion resistance. Working pressure: SPG bidirectional seals can withstand pressures up to 35MPa, and some high-performance products can even withstand higher pressures. Operating temperature: Its operating temperature range is wide, generally from -30℃ to 200℃, adapting to different industrial environments. Coefficient of friction: A low coefficient of friction ensures the smoothness of the seal during operation and reduces wear.

  place of origin  Guangdong, China
  Brand Name  WS-Seals
  model number  Piston seals
  Name  Hydraulic Cylinder Piston spg spgo spno spgw seal
  Type  spg
  Color  green ,grey,black
  Feature  Oil resistance
  Max working temperature  -35~+200° C
  MOQ  10pcs
  Certificate  ISO
  Keyword  spg seal
  Hardness  40~90 Shore
  Pressure (MPa):  35

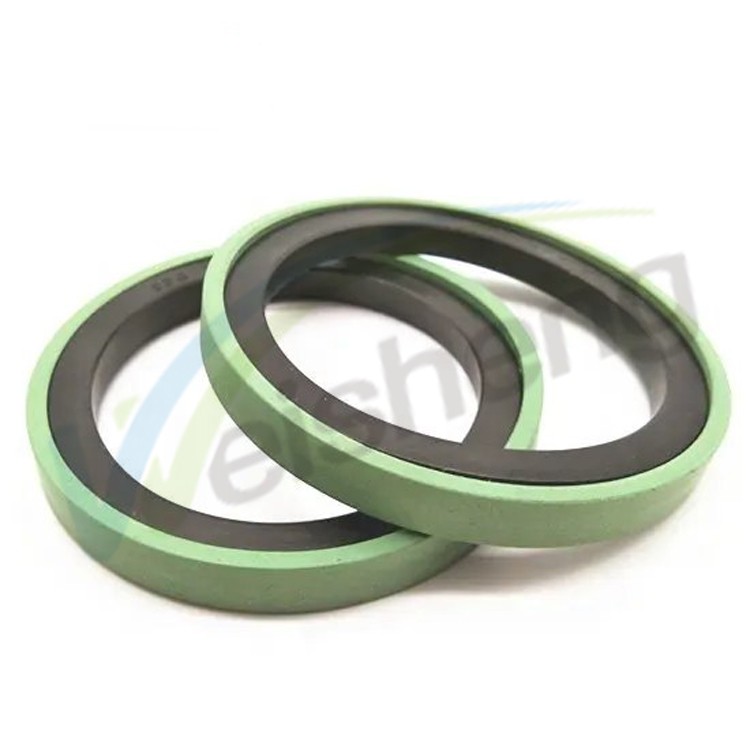

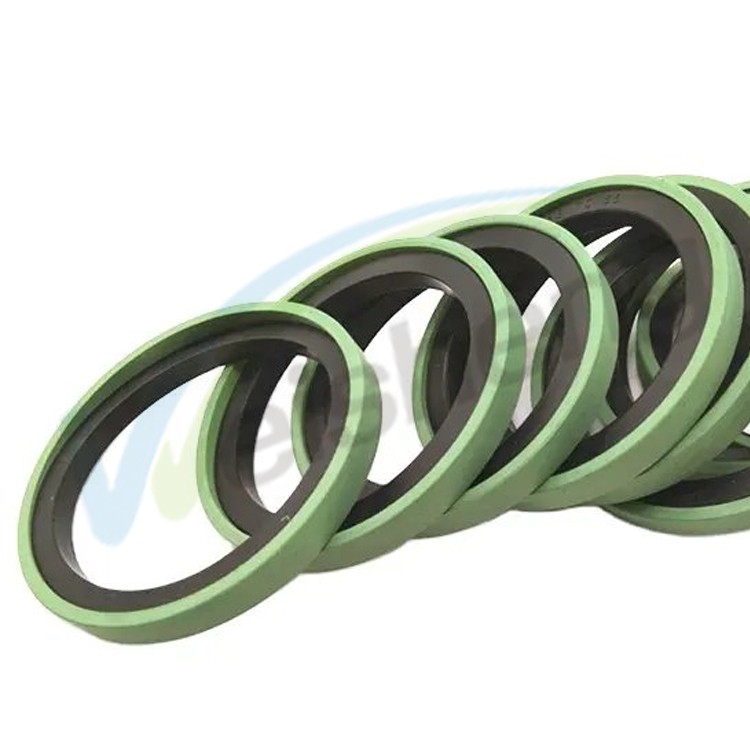

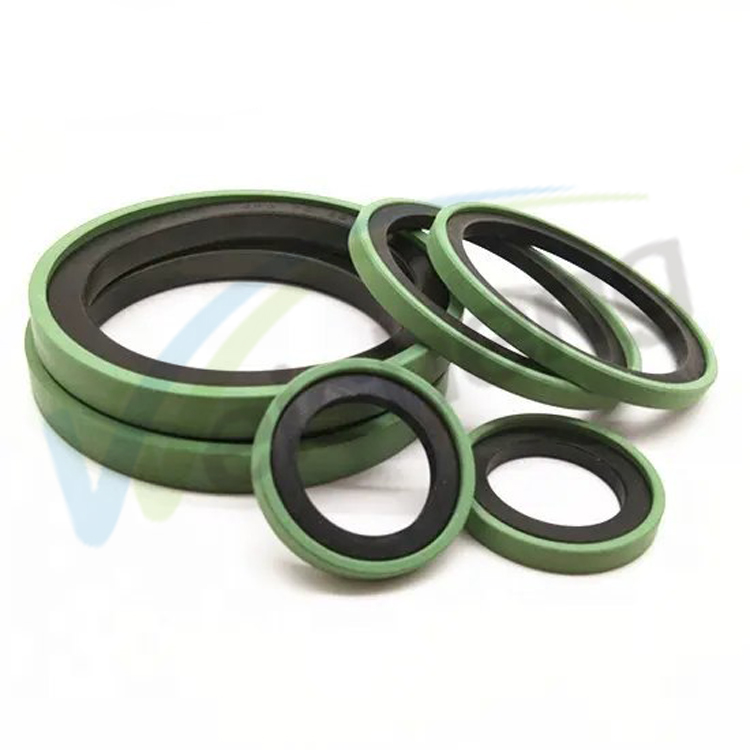

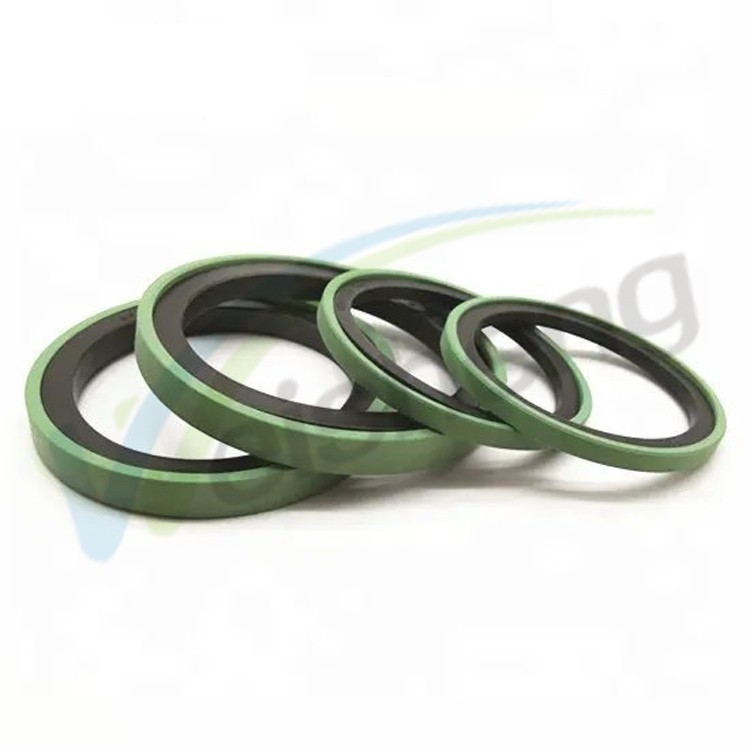

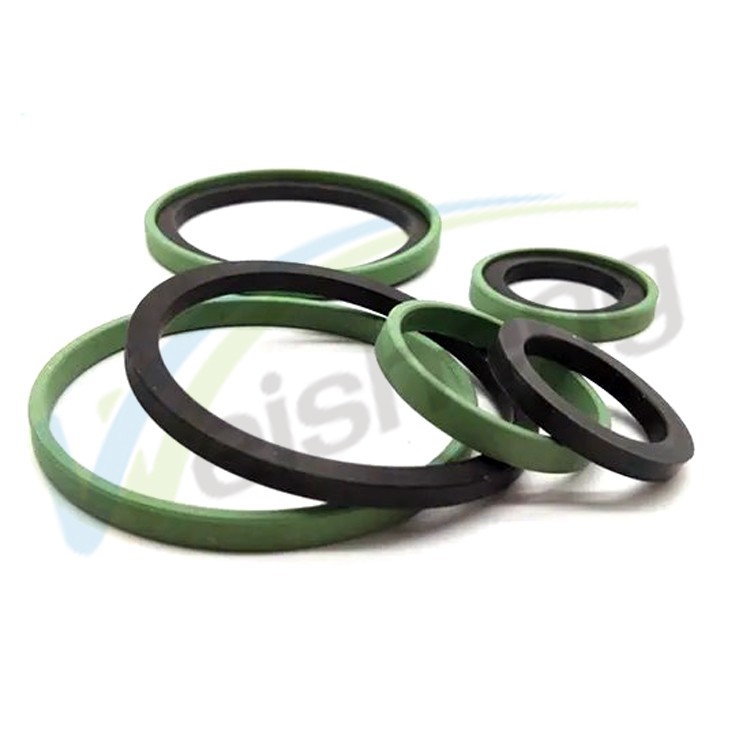

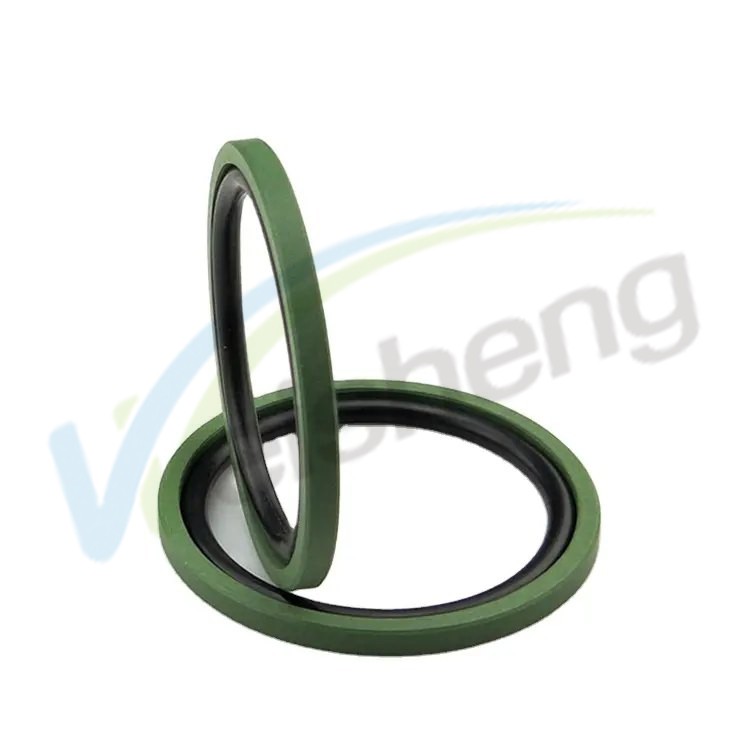

Detailed Image
