WS-SEALS PU EU Pneumatic Seal Dust Proof Hydraulic Cylinder Seal

WS-SEALS PU EU Pneumatic Seal Dust Proof Hydraulic Cylinder Seal

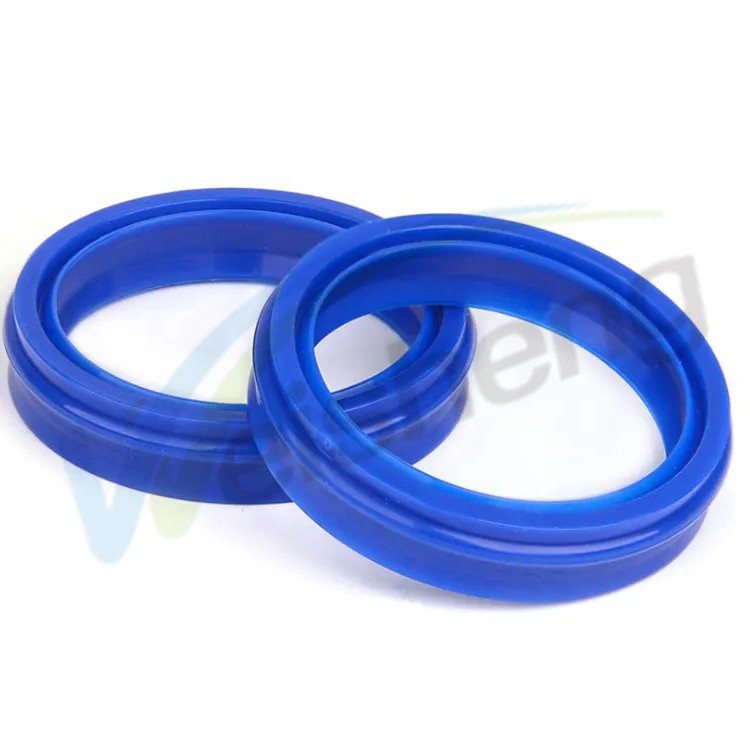

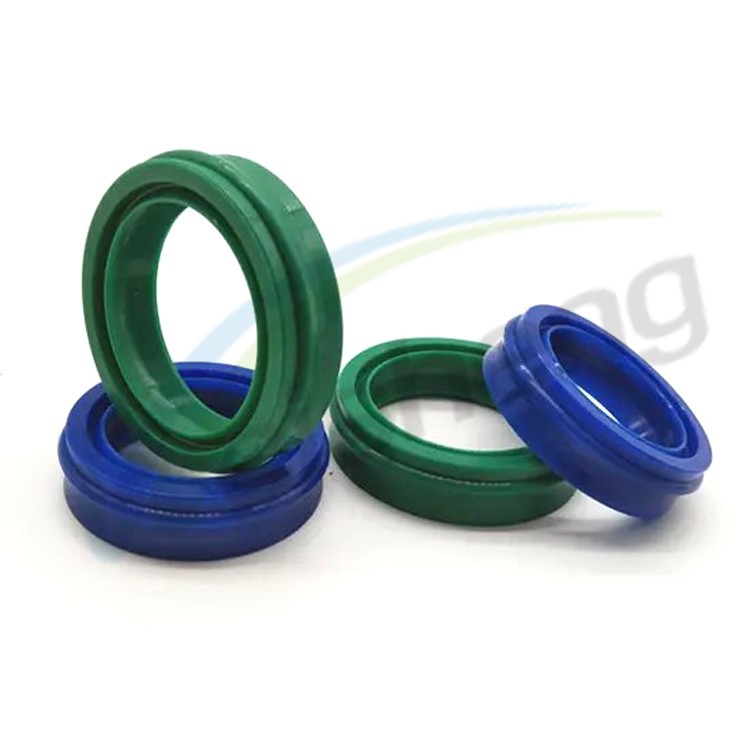

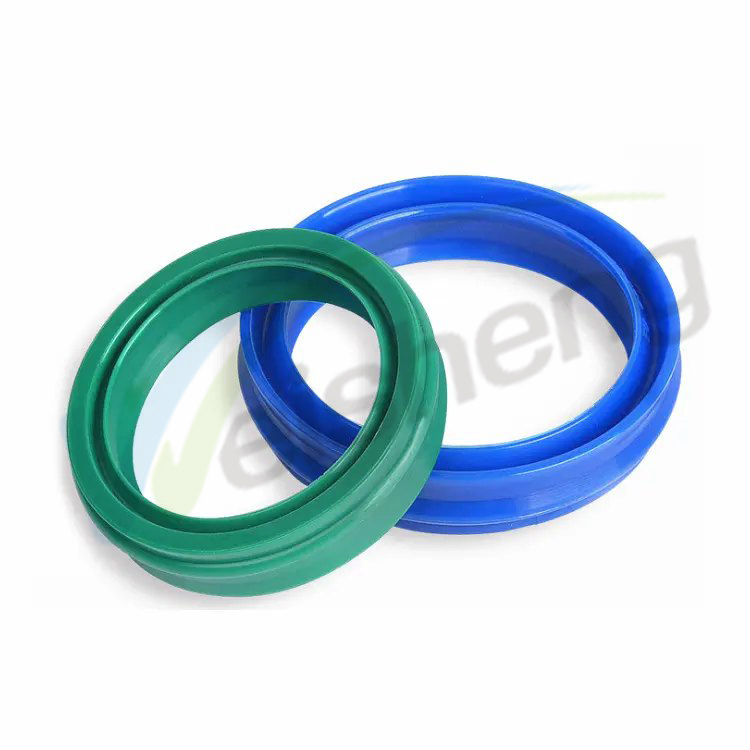

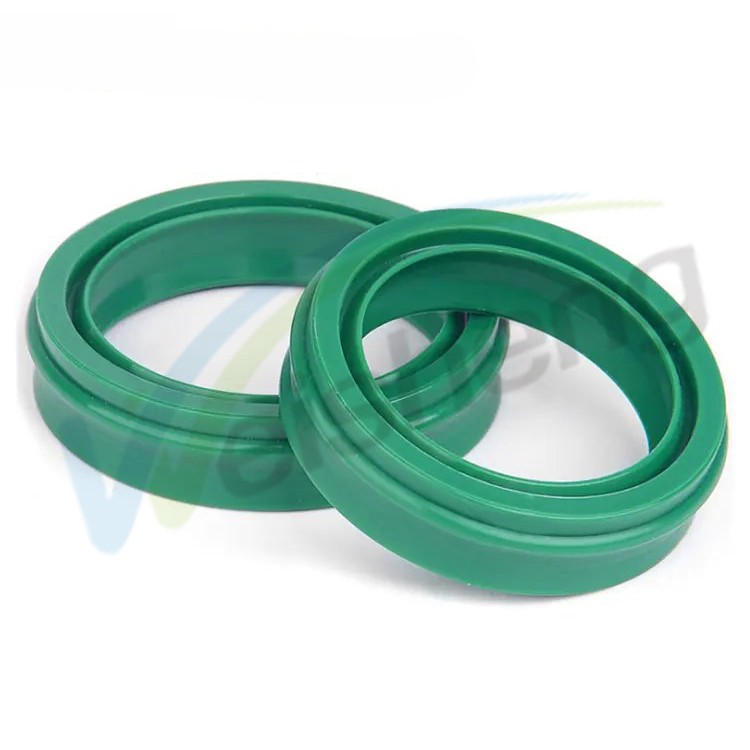

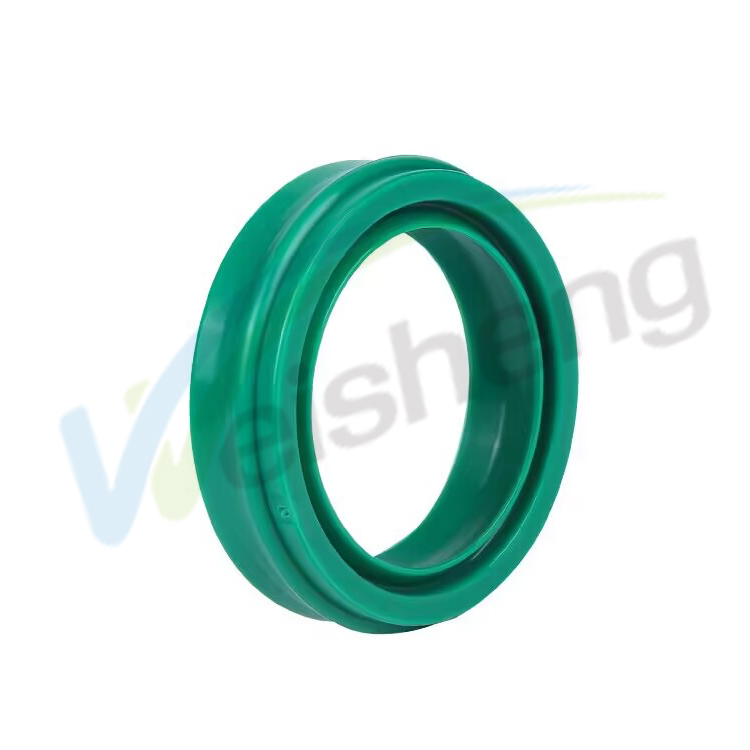

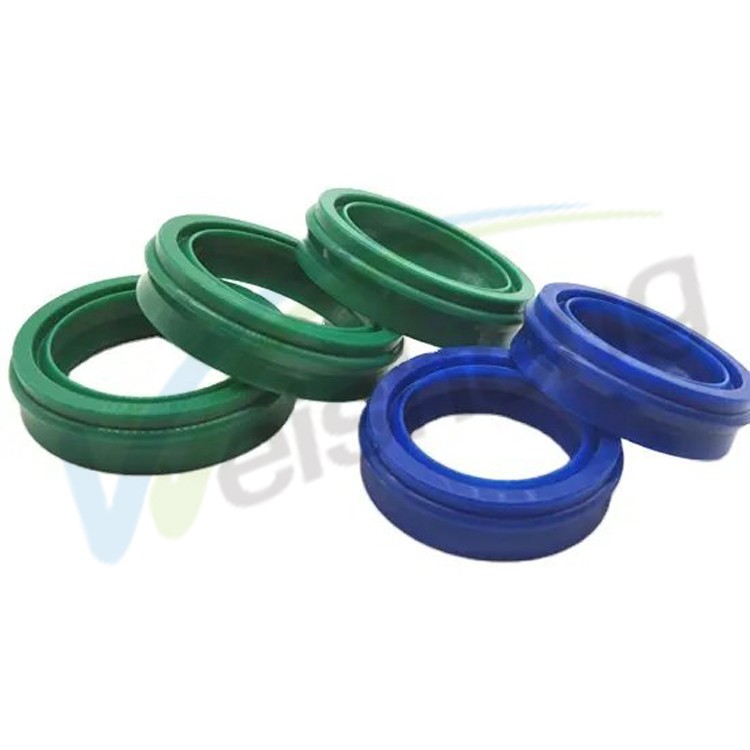

EU Type Radial Shaft PU Oil Seal Green PU rotary shaft seal is oil resistance, wear resistance, heat resistance, aging resistance, high hardness, elasticity, and easy to install. The EU-type sealing ring has 3 functions: sealing, dust-proofing, and fixing, due to the positioning dust proof ring. Widely used in telescopic cylinders to prevent dust, dirt, sand, and metal debris from entering. Applied to industrial pneumatic cylinders, air drills, moving rods of guide rods, and piston rods (pull rods) in static pressure

Product Description

place of origin	Hebei, China
Brand Name	WS-Seals
Size	Standard
Color	Blue ,Green
Material	PU
Name	PU EU Pneumatic Seal Dust proof seal
Application	Pneumatic
Usage	Car, Plastic, Cylinder, auto parts etc
Sample	Freely
Keyword	EU seal
MOQ	10
Temperature	-30~+100℃

SIZE LIST

NO.	d	D	H
EU12	12	19	10
EU12A	12	20	10.7
EU12B	12	22	11.7
EU14	14	24	12.7
EU16	16	26	13.7
EU18	18	28	14.7
EU20	20	30	15.7
EU22	22	32	11.2
EU25	25	35	12.2
EU30	30	40	13.2
EU32	32	42	14.2
EU40	40	50	15.2
EU45	45	55	12.2
EU50	50	60	13.2
EU63	63	75	13
