Feature highlights: High-quality DKB DKBI VAY DLI LPIY Dust Seal for excavators, made of PTFE material with res istance to oil, abrasion , and solvents , Operates effectively in temperatures from -30°C to +120°C and speeds up to 1.5m s. Ensures premium service and strict quality control.
Product Description
These are a common Wiper for Japanese earthmoving equipment, forklifts etc. These rod Wipers are moulded from Urethane and encased in a heavy duty metal case. This gives them exceptional abrasion resistance and outstanding endurance under difficult operating conditions. Highly effective in removing dirt and contaminants from the rod.
DKBI/DKB is a wiper with a metal framework which usd in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A and Metal case.
Technical Data
Temperature: -35 to +100 ℃
Speed: 1m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: PU Framework: Metal
Hardness: 93 ±2 Shore A
Color: Blue / Green / Light yellow
Advantages
High abrasion resistance.
Widely applicable.
Easy installation.
Size list
| NO | SIZE | NO | SIZE |
| 1 | 30*42*6/9 | 13 | 85*99*8/11 |
| 2 | 32*44*6/9 | 14 | 90*104*8/11 |
| 3 | 35*47*6/9 | 15 | 95*109*8/11 |
| 4 | 40*52*6/9 | 16 | 100*114*8/11 |
| 5 | 45*57*6/9 | 17 | 105*121*8/11 |
| 6 | 50*62*6/9 | 18 | 110*126*9/12 |
| 7 | 55*69*7/10 | 19 | 115*131*9/12 |
| 8 | 60*74*7/10 | 20 | 120*136*9/12 |
| 9 | 65*79*8/11 | 21 | 125*141*9/12 |
| 10 | 70*84*8/11 | 22 | 130*146*10/14 |
| 11 | 75*89*8/11 | 23 | 140*160*10/14 |
| 12 | 80*94*8/11 | 24 | 160*180*10/14 |

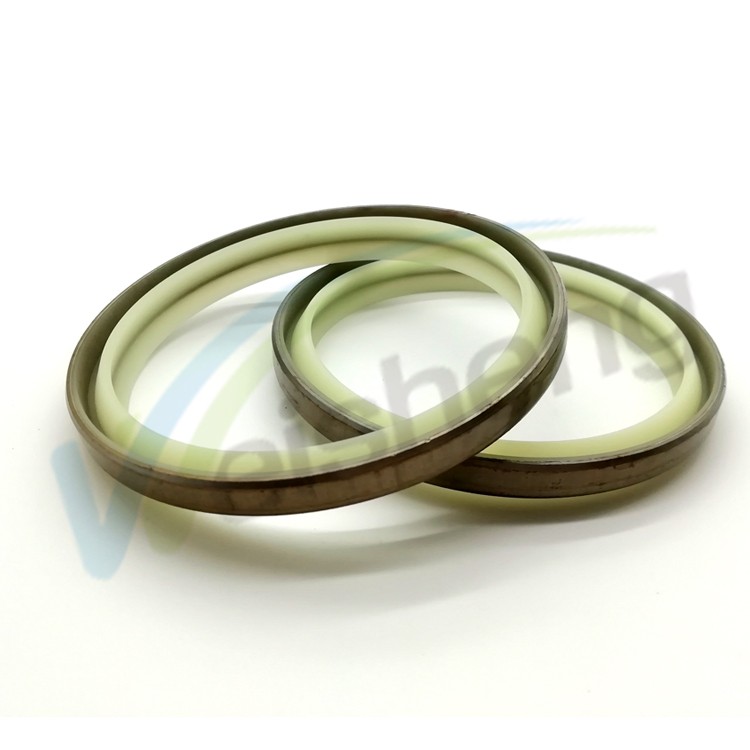

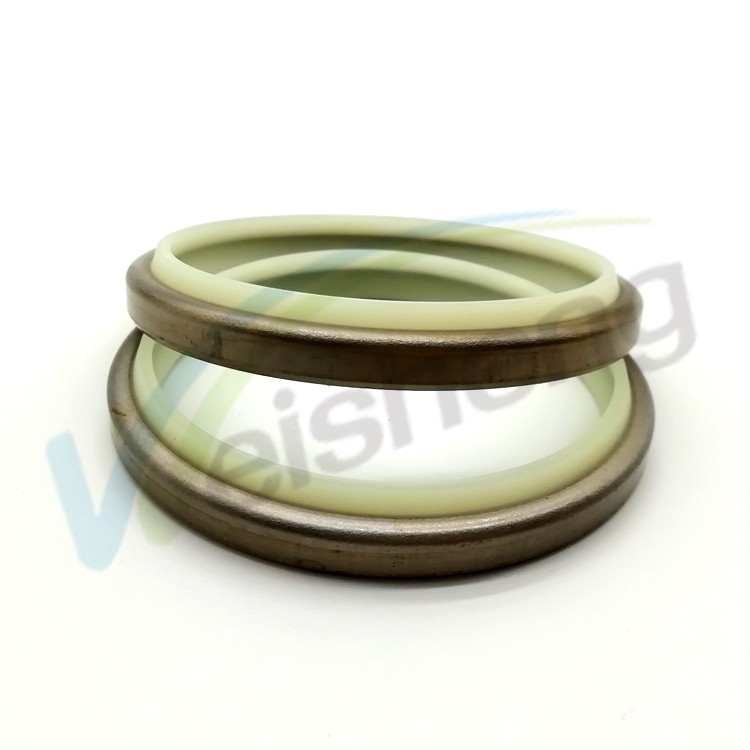

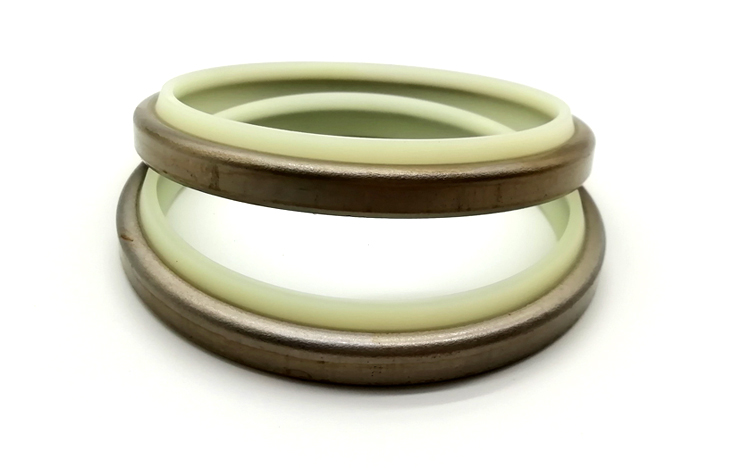

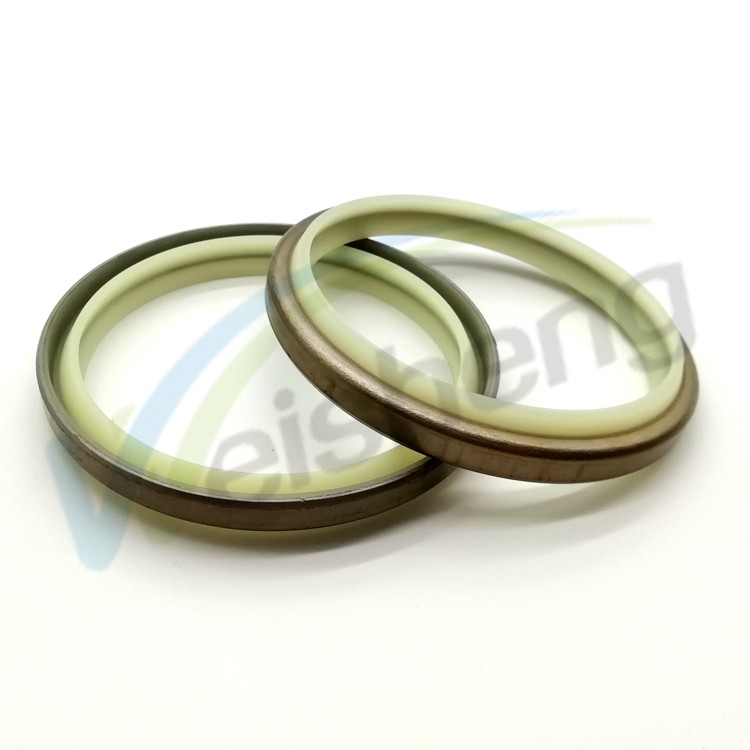

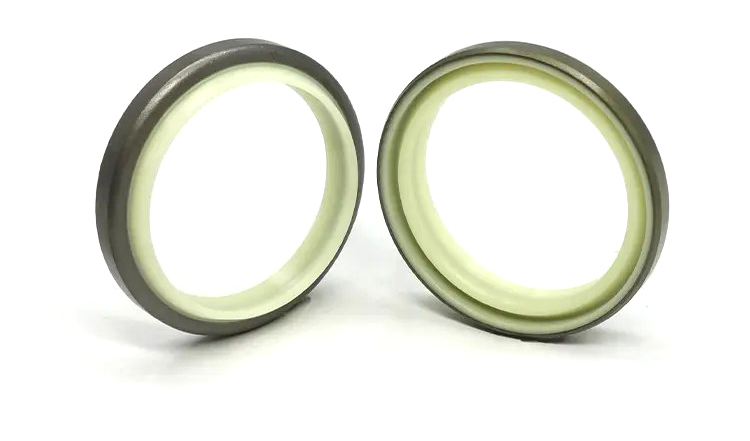

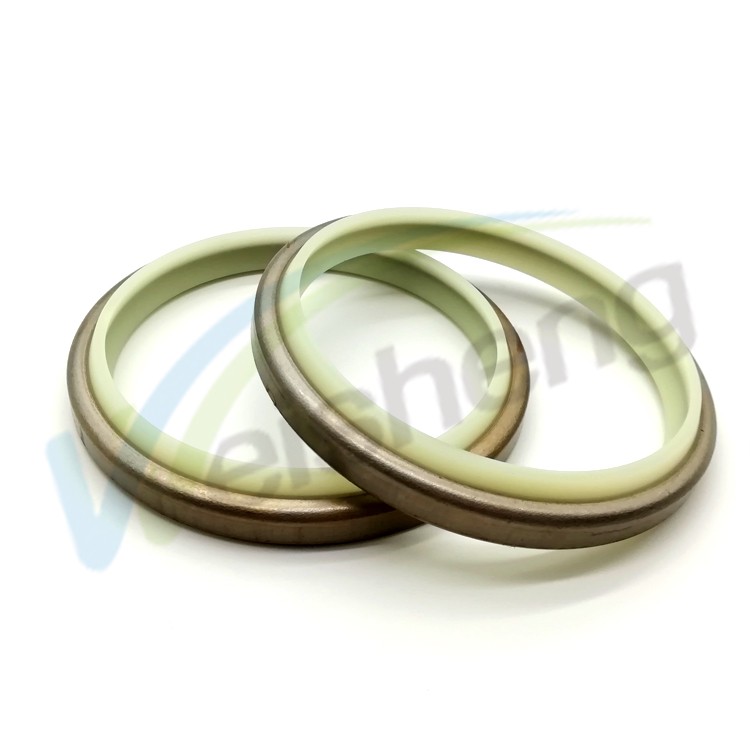

Detailed Image
